Free Download Dlubal -Rwind for Windows PC. This powerful software is designed for the numerical simulation of wind flows around any building geometry. PC Process and CFD Support. It is an independent application and an add-on for rfem and rbst, which sacrifices a complete structural analysis and design solution. A Digital Wind Tunnel Approach Enables Engineers to Simulate Wind Flows to Simulate Different Structures and Precisely Determine The Wind Loads On Surfaces. Use the simplefoam solver from the openfoam software package.
- Implements Numeric Schemes First and Second Order. K -Ω and race k -ang.
- Takes Into Account Surface Roughness Based On Model Zones.
- Model design via VTP, STL, Object and IFC Files.
Intuitive Operation
- Bidirectional interface with rfem or rabs for import/exporting model geometries and wind load.
- User -Friendly with the help of drag & drop and graphic adaptation. Terrain etc.). Fields.

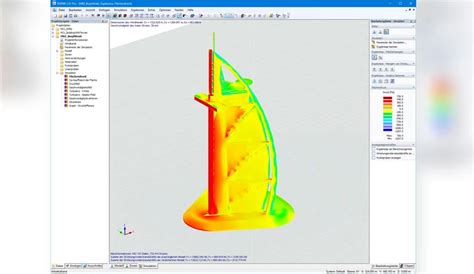

- 3D Wind River Visualization via Animated Optimized Graphics.
- Definition of Point and Line Probes for A Detailed Analysis.
- Multilingual User Interface for Global Accessibility.
- uses the bluedymolver solver for incompressible turbulent flows.
- Les Spalartallmarasdes Turbulence Model.
- Automatic determination of the analysis time and time steps.
- Wind permeability for surfaces. RFEM
- Anmodel Structures in Basic, A Certain Application in RFEM and RBST Enables You to Define Wind Directions and Increased Wind.
- Profile. Alternatively, basic can be used manuality, with structures and terrain modeling directly from imported files. The Wind Load and Other Liquid-
- Mechanical Data can be defined in Basic. A Numerical CFD Model for Simulating Wind Flows around Objects with a Digital Wind Tunnel. The Simulation Process Determines Specific Wind Loads On Model Surfaces and Provides Precise Results for Structural Analysis. It expands this ability by offering a transient solver for incompressible turbulent currents. CP Distribution, Speed Field, Turbulence Fields and More. These results can be exported as pictures or videos for further analyzes or presentations. The analysis triggers a batch process, which start all definitions in the numerical wind tunnel from basic and the cfd analysis. The resulting Surface Pressures are transferred to the respective RFEM or RBSTAB LAID CASES. /8/7
- Free Hard Disk Room: 10 GB or More is Recommended
Transient Wind Flow Calculation
Advanced Wind Permeability
Conclusion
Dlubal Rwind is a modern wind simulation tool for Structural Analysis and Design.
